Introduction
Network video and audio decoder & encoder matrix, also known as digital matrix, is designed for network video surveillance system, is based on professional decoder chip. The Linux operating system, with good facilities and excellent stability decoding capabilities, helps optimize the Digital Decoder Matrix. H. 265 series products support 4K, H.264 series products support HD 1080P , also the following resolutions online video decoding and output; support for multiple network transport protocols, multiple transmission streams, the network video and audio decoding output, large screen wall decoding, segmentation and Stitching on the display screen wall and other services to provide strong support for the Digital Decoder Matrix.
Features
- Supports H.265 Main Profile Level5.1, H.264 Baseline / Main / High Profile Level5.0,
- MPEG4 SP L0 ~ L3 / ASP L0-L5, MJPEG / JPEG Baseline decoding.
- Single module supports 4 ch 4K / 16 ch 1080P / 32 ch 720P / 64 ch D1 video decoding via the Digital Decoder Matrix.
- Supports 4K, 500W, 300W, 200W, 130W and other standard video decoding.
- Supports PAL / NTSL other standard formats.
- Supports standard ONVIF access.
- Supports video RTSP streaming.
- Supports for video file playback.
The Panel Connection Diagram
With a webcam, the IP decoding Service CARD can be extended. A single network port can decode the 72-channel IPC at the same time, and the video of each camera can be transferred to any window position on the screen for display.

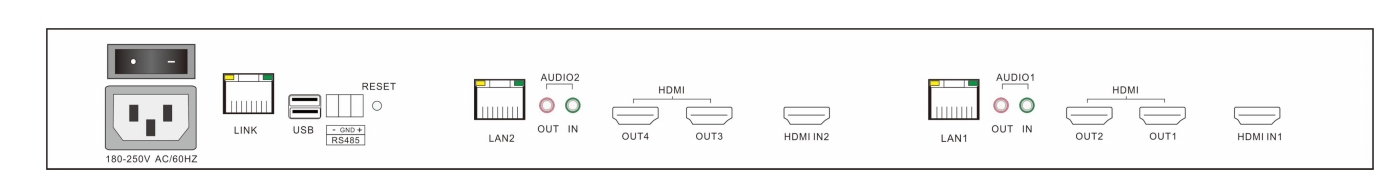

The H.265 1U standard digital matrix backplane schematic
The H.265 2U standard digital matrix backplane schematic
The H.265 4U standard digital matrix backplane schematic illustrates the connections for your Digital Decoder Matrix setup.
LINK: multi-machine cascade expansion port.
USB: USB port, mouse, and other devices can be connected.
RESET: Reset button, press and hold the power is more than 3 seconds can be restored to the factory default.
RS485: RS485 port connection, you can access various types of analog equipment.
LAN: Gigabit Ethernet port, you can access the network.
AUDIO OUT: Audio output.
AUDIO IN: Audio input.
HDMI IN: HDMI input, access HDMI signal is encoded.
HDMI OUT: HDMI output, directly connect all kinds of HDMI display device to the Digital Decoder Matrix.
Application scene
Shopping mall
Monitor center
Command & Dispatch center
