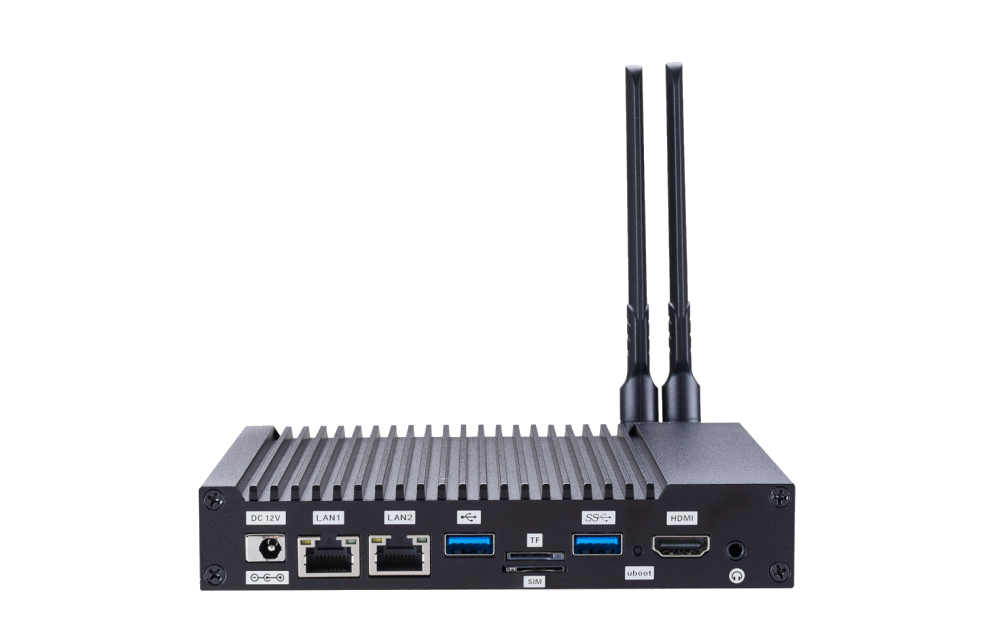

LCD Video Wall IoT controller — **Model: VD-IC3588**

Introduction

The VD-IC3588 is equipped with Rockchip RK3588 quad-core processor, the main frequency is up to 2.4GHz, the built-in independent NPU, the computing power can reach 6Tops. Rich expansion ports are configured to flexibly connect to various peripherals. This makes it an excellent choice for an Audio Video Wall Controller. The ultra-thin design can meet the deployment requirements of diverse scenarios. A reliable Audio Video Wall Controller is essential for modern command centers, providing efficient control and display.

GET A QUOTE

Overview

Features

specifications

Features

High-Performance Device

Dual Gigabit network ports;
Support 9V-15V wide voltage input;
Support up to 32GB RAM;
Built-in neural network NPU, supporting 6Tops computing power;
HDMI supports up to 8K resolution, crucial for an advanced Audio Video Wall Controller;

Versatile Connectivity Options

4 way USB interfaces, 2 way RS232 (optional 1 for RS485), 6 way KIO;
Support WiFi6, Bluetooth V5.0 and Ethernet;
Built-in PCIe interface, support a variety of PCIe 4G modules such as YUGE, Quectel (4G is optional);

Multiple Functions

Multiple function keys (1 button with light, 1 burning key);
Perfectly supports various mainstream touch screens such as infrared, capacitance, and resistance, and supports mainstream peripheral drivers, making it an ideal Audio Video Wall Controller.

Specifications

CPU	Rockchip RK3588, Quad-core Cortex-A76 + quad-core Cortex-A55, up to 2.4GHz
GPU	Mail-G610 MC4
DDR	With Standard 2GB, 4GB/8GB/16GB/32GB Optional
Flash	Standard 16GB, up to 256GB
HDMI output	1 supports up to 8K output
Headphone	1-WAY, support CTIA 4-pole HP/Mic 3.5mm socket

Serial Port	2 RS232 Serial Port （ One RS485 port is Optional ）
KIO	6
Bluetooth	BT5.0
Ethernet	2, 10/100/1000M adaptive Ethernet
WiFi ANT	1
WiFi	WiFi6
