How to Set Up the NovaStar TB10 Plus: Key Features You Shouldn’t Miss

The Novastar TB10 Plus is a revolutionary multimedia player designed for modern led signage applications. Whether you’re managing commercial billboards, retail store displays, or smart city installations, this device offers unparalleled performance and versatility. In this blog, we’ll explore the key features, setup process, pricing, and how it compares to its sibling, the Novastar TB20. Let’s dive in!

Table of Contents

1.What Makes the Novastar VX2000 Pro Special?
2.Key Advantages and Features of Novastar VX2000 Pro
3.Detailed Technical Specifications of VX2000 Pro LED Controller
4.Control and Operation of Novastar VX2000 Video Processor
5.Novastar VX2000 Pro vs VX4000 Pro
6.Applications and Use Cases of Novastar VX2000 Pro LED Controller
7.Novastar VX2000 Pro Resource Access
8.FAQs
9.Summary

1. What Is the Novastar TB10 Plus?

The Novastar TB10 Plus is a next-generation multimedia player from NovaStar, tailored for full-color led signages. This all-in-one solution integrates playback and sending capabilities, allowing users to publish content and control LED screens seamlessly. With support for cloud-based publishing and monitoring platforms, the TB10 Plus Multimedia Player enables remote management from any Internet-connected device, including computers, tablets, and smartphones.

One of its standout features is its ability to play content directly from a USB drive, making it versatile for various playback needs. Additionally, the TB10 Plus LED Screen Controller incorporates advanced security measures such as terminal authentication and player verification to ensure secure playback.

Designed for reliability, ease of use, and intelligent control, the Novastar TB10 Plus is ideal for fixed displays, lamp-post screens, chain store displays, advertisement players, retail store displays, door head displays, shelf displays, and more. Its robust design and cutting-edge technology make it a winning choice for both commercial and smart city applications.

NovaStar TB10 Plus in LED Display Systems

The Novastar TB10 Plus is widely used in modern LED display systems and digital signage projects.

It is commonly integrated into:

• Retail advertising screens
• Shopping mall LED displays
• Smart city signage systems
• Indoor & outdoor LED video walls

This makes it a key component in modern digital signage solutions.

2. Key Features of the Novastar TB10 Plus Multimedia Player

Let’s delve into the standout features that make the Novastar TB10 Plus Multimedia Playback Box a top-tier choice for led signage management:

2.1 Output Capabilities

• Loading Capacity: Supports up to 650,000 pixels with a maximum width of 2048 pixels and a maximum height of 2048 pixels per Ethernet port.
• Gigabit Ethernet Output: Ensures smooth data transmission for high-resolution displays.
• Stereo Audio Output: Equipped with a 3.5mm audio connector, supporting an audio sample rate of 48 kHz.

2.2 Control Options

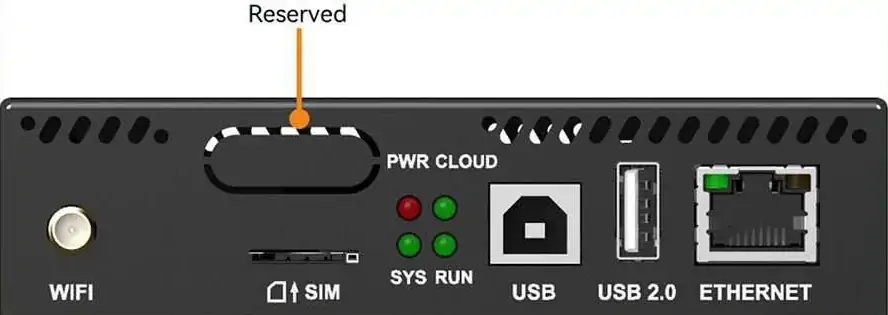

• USB Ports: Includes one USB 2.0 (Type A) port for USB playback, firmware upgrades, and storage expansion, and one USB (Type B) port for connecting to a control computer.
• Ethernet Port: Connects to a LAN or public network for content publishing and screen control.
• RS485 Ports: Connects to brightness sensors or temperature and humidity sensors for enhanced functionality.

2.3 Performance

• Processor: Powered by a Quad-core ARM A53 processor running at 1.4 GHz, ensuring smooth operation and efficient multitasking.
• Memory: Features 2 GB of RAM and 32 GB of internal storage, expandable up to 128 GB via USB.
• Video Decoding: Supports hardware decoding of 4K videos and can handle multiple video formats simultaneously, including 1x 4K, 3x 1080p, 8x 720p, 16x 480p, or 20x 360p videos.

2.4 Functionality

• Remote Control: Enables users to publish content and control screens from anywhere, anytime, using a computer, mobile phone, or tablet.
• Wi-Fi Modes: Supports simultaneous Wi-Fi AP and Wi-Fi STA modes, offering flexible network access.
• Synchronization: Provides options like NTP, GPS, and RF time synchronization for precise multi-screen playback.
• Sensor Support: Compatible with brightness sensors and temperature/humidity sensors for adaptive display adjustments.

2.5 Design and Build

• Compact and durable metal casing ensures long-term reliability.
• Dimensions: 136.5 mm × 110.5 mm × 18.0 mm, making it easy to integrate into various setups.

3. How to Set Up the Novastar TB10 Plus Multimedia Playback Box

Setting up the Novastar TB10 Plus Multimedia Playback Box is straightforward, thanks to its user-friendly design. Follow these steps to get started:

Step 1: Hardware Connections

1. Power Supply: Connect the device to a DC power source (5V to 12V).
2. led signage: Use the Gigabit Ethernet output port to connect to your led signage.
3. Audio Output: Plug in a 3.5mm audio connector for stereo sound.
4. USB Drive: Insert a USB drive containing your media files into the USB 2.0 (Type A) port.

Step 2: Network Configuration

1. Wi-Fi Setup: Turn on the built-in Wi-Fi hotspot (default SSID: “Model+Last 8 digits of SN”) and connect your terminal devices. Alternatively, configure Wi-Fi STA mode to connect to an existing network.
2. Ethernet Connection: Use the Fast Ethernet port to connect to a LAN or public network for remote control.

Step 3: Content Publishing

1. Cloud-Based Platform: Log in to NovaStar’s cloud-based platform (e.g., ViPlex Express) to publish and manage content remotely.
2. Local Playback: Use the USB drive for offline playback without requiring an Internet connection.

Step 4: Advanced Settings

1. Sensor Integration: Connect brightness or temperature sensors via the RS485 ports for adaptive display adjustments.
2. Time Synchronization: Enable NTP, GPS, or RF time synchronization for precise multi-screen playback.

With these simple steps, you can unlock the full potential of the Novastar TB10 Plus Multimedia Player and start managing your led signages effortlessly.

Where TB10 Plus Is Used in Real Projects

Beyond setup, the TB10 Plus is widely used in professional display systems such as:

• LED advertising screens in retail stores
• Indoor LED video walls in corporate environments
• Outdoor billboard control systems
• Transportation and public information displays

👉 These systems are usually provided by a professional LED display manufacturer or digital signage solution provider.

4. TB10 Plus LED Screen Controller Price

When considering the Novastar TB10 Plus Price, it’s important to evaluate the value it offers compared to its cost. Prices typically range from $60 to $150, depending on the supplier and order volume.

For small orders, suppliers like SHENZHEN LEDRGX ELECTRONICS CO., LTD offer competitive pricing starting at $60 per unit. For bulk purchases (MOQ 100+), Shenzhen Yao Caixing Electronic Co., Ltd. provides excellent discounts, with prices as low as $60-$68.88 per unit.

While the initial investment may seem higher than older models, the TB10 Plus LED Screen Controller delivers superior performance, advanced features, and long-term reliability, making it a cost-effective solution for modern led signage systems.

5. Novastar TB10 Plus vs Novastar TB20

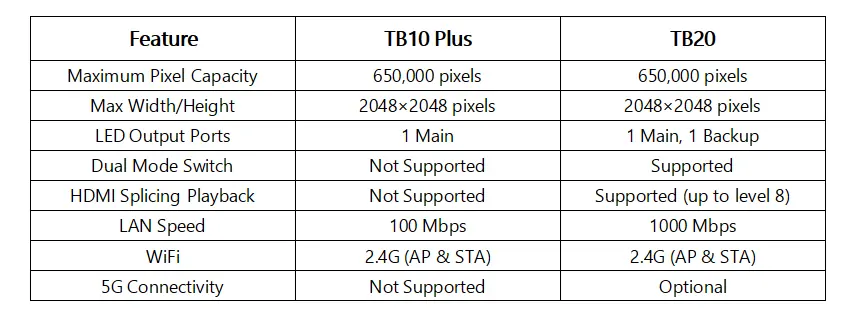

When comparing the Novastar TB10 Plus vs TB20, several key differences emerge:

While both models share similar core features, the TB20 offers additional functionalities like dual-mode switching, HDMI splicing playback, and gigabit LAN speed. However, the Novastar TB10 Plus remains a more budget-friendly option for users who don’t require these advanced features.

6. FAQs

7. Conclusion

The Novastar TB10 Plus is a powerful and versatile multimedia player designed to meet the demands of modern led signage systems. With its impressive features, user-friendly setup process, and competitive pricing, it stands out as a reliable choice for businesses and smart city applications alike.

Whether you’re looking for seamless content management, robust performance, or advanced connectivity options, the Novastar TB10 Plus Multimedia Player has you covered. Compare it with the TB20 to determine which model best suits your needs, and take the first step toward elevating your led signage experience today!
