Introduction: The Importance of LED Screen Panels
In today’s digital era, LED Screen panels have become indispensable for commercial advertising, sports stadiums, event productions, and corporate communications. From massive outdoor billboards to indoor conference room screens, selecting the right LED panel directly impacts visual quality, energy efficiency, and long-term maintenance costs. This guide breaks down the essential factors to help you make an informed decision.
Catalogue
- What is an LED Screen Panels?
- Key Factors When Choosing LED Screen Panels
- Types of LED Panels Compared
- Application-Based Selection Guide
- Maintenance & Lifespan
- Cost Considerations
- Future Trends
- Buying Recommendations
- FAQ
- Conclusion
What is an LED Screen Panels?
An LED display panel is a modular unit composed of numerous light-emitting diodes (LEDs) that can be tiled together to form screens of virtually any size. Each LED acts as a pixel, and the combination of varying brightness and colors creates images and video content. The quality of the panel determines the overall performance of the display.
Key Factors When Choosing LED Screen Panels
1. Pixel Pitch
Pixel pitch refers to the distance (in millimeters) between the centers of two adjacent LED pixels. It’s one of the most critical specifications:
- Fine Pitch (<2.5mm): Ideal for indoor applications where viewers are close, such as control rooms, retail stores, and boardrooms.
- Medium Pitch (2.5–6mm): Suitable for most indoor and semi-outdoor environments.
- Large Pitch (>6mm): Primarily used for outdoor billboards and stadiums where viewing distances are long.
2. Resolution & Viewing Distance
Resolution is determined by both panel size and pixel pitch. The closer the viewing distance, the higher the resolution required. A simple rule of thumb: Minimum Viewing Distance (meters) = Pixel Pitch (mm) × 2
3. Brightness & Contrast Ratio
- Indoor use: Typically requires 500–1,500 nits.
- Semi-outdoor/shaded areas: Recommended 2,000–3,500 nits.
- Full outdoor/sunlight conditions: Needs 5,000 nits or higher.
Contrast ratio affects image depth and detail. A higher contrast ratio delivers more vibrant and lifelike visuals.
4. Refresh Rate & Grayscale
A high refresh rate (≥1920Hz) ensures smooth playback of fast-motion content without flickering or blurring, essential for sports and gaming. Higher grayscale (16-bit or more) enables smoother color transitions and richer detail.
Types of LED Screen Panels Compared
1. Surface-Mounted Device (SMD)
- Advantages: Wide viewing angle, uniform color, good heat dissipation.
- Best for: Both indoor and outdoor use; the current market standard.
2. Dual In-line Package (DIP)
- Advantages: High brightness, excellent waterproofing.
- Best for: Traditional outdoor applications.
3. Chip-on-Board (COB) & Glue-on-Board (GOB)
- Advantages: Enhanced durability, better protection, lower maintenance.
- Best for: High-reliability environments.
4. Mini LED & Micro LED
- Advantages: Ultra-fine pixel pitch, exceptional image quality, low power consumption.
- Best for: Premium indoor displays; represents the future of LED technology.

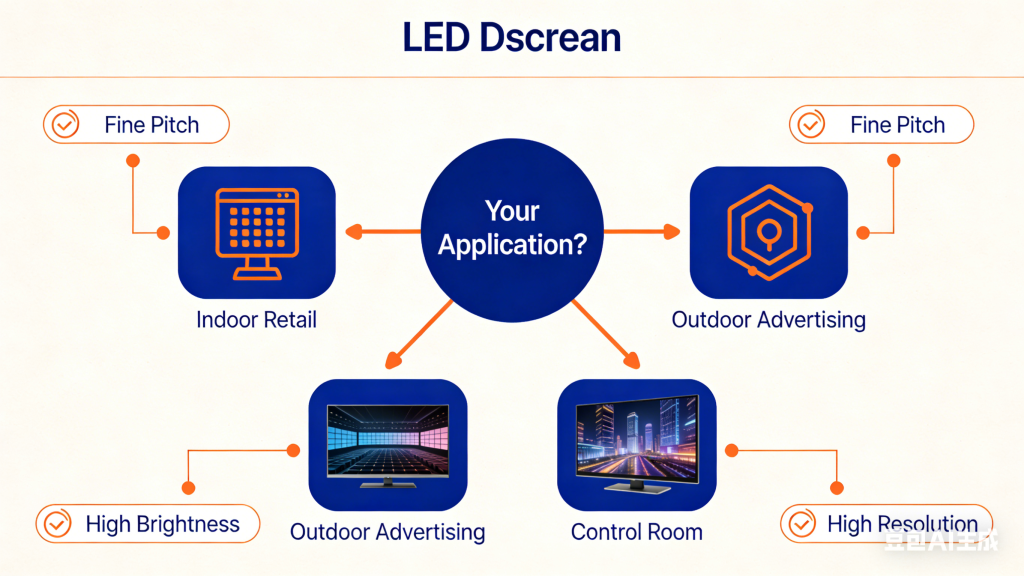

Application-Based Selection Guide
Commercial Retail
- Recommended: P1.2–P2.5 fine-pitch panels.
- Key features: High resolution, wide viewing angle, vibrant colors.
Corporate & Education
- Recommended: P1.5–P2.0 COB or GOB panels.
- Key features: Low blue light, impact-resistant, comfortable for prolonged viewing.
Outdoor Advertising
- Recommended: P4–P10 high-brightness panels.
- Key features: Weatherproof, dust-resistant, adjustable brightness.
Events & Stages
- Recommended: P2.5–P4 high-refresh-rate panels.
- Key features: Excellent motion handling, lightweight, often flexible or curved.
Maintenance & Lifespan
Average Lifespan
High-quality LED panels can last up to 100,000 hours under normal operating conditions. Lifespan is influenced by:
- Operating temperature control
- Power supply stability
- Environmental conditions
Maintenance Tips
- Clean the screen surface regularly.
- Inspect cables and power supplies.
- Monitor individual pixel performance.
- Maintain appropriate temperature and humidity levels.
Cost Considerations
When investing in LED screen panels, look beyond the initial purchase price. Total Cost of Ownership (TCO) includes:
- Initial purchase cost.
- Installation and calibration.
- Energy consumption (varies by up to 30% between panel types).
- Maintenance and repair expenses.
- Depreciation over the expected lifespan.
Future Trends
- Smaller Pixel Pitch: Moving toward micron-level pitches for even finer detail.
- Flexible & Curved Panels: Enabling creative installations and architectural integration.
- Smart Integration: Built-in sensors and AI for adaptive brightness and content optimization.
- Transparent LED: Growing use in retail windows and building facades.
- Sustainability: Lower energy consumption and increased use of recyclable materials.
Buying Recommendations
- Define Your Needs: Determine core specifications based on viewing distance, installation environment, and use case.
- Evaluate Suppliers: Choose vendors with strong technical support and reliable after-sales service.
- Request Samples: Test panels in person before finalizing your decision.
- Check Certifications: Ensure products meet relevant safety and quality standards.
- Review Contracts: Clarify warranty terms, repair response times, and spare parts availability.
FAQ
Q1: What’s the difference between LED screens and LCD/OLED TVs?
A: The core difference is the technology and structure.
- LED Screens use discrete LED lights as direct light sources for each pixel. They are modular, allowing for seamless scaling to enormous sizes (like stadium jumbotrons), offer superior brightness for outdoor use, and have no bezels when tiled.
- LCD TVs use a liquid crystal panel that blocks or allows light from a LED backlight (hence “LED TV” is a misnomer). They have a fixed size, lower peak brightness, and visible bezels.
- OLED TVs have pixels that emit their own light. While they offer perfect blacks, they are not modular, are limited in size and brightness, and are prone to burn-in, making them unsuitable for most commercial display applications.
Q2: How do I choose the right pixel pitch?
A: Pixel pitch (P), the distance between pixels in millimeters, is the most critical factor for image clarity at a given viewing distance.
Formula (Rule of Thumb): Minimum Viewing Distance (meters) ≈ Pixel Pitch (mm) × 2-3
P1.2 – P1.8 (Fine Pitch): For very close viewing (＜ 3 meters). Ideal for control rooms, broadcast studios, luxury retail, and corporate lobbies.
P2 – P3 (Small Pitch): For moderate viewing distances (3-6 meters). Common in conference rooms, classrooms, shopping malls, and indoor events.
P4 – P6 (Medium Pitch): For longer distances (6-15 meters). Used in larger indoor venues, semi-outdoor areas, and some outdoor signage.
P8+ (Large Pitch): For very long distances (＞ 15 meters). Standard for outdoor billboards, stadium perimeter rings, and large façade lighting.
Q3: What does “refresh rate” and “grayscale” mean, and why are they important?
A:
- Refresh Rate (Hz): How many times per second the image updates. A high refresh rate (≥3840Hz) is crucial for capturing fast-action content (sports, gaming) without motion blur or scan lines when filmed by cameras. Low refresh rates can cause visible flickering on camera.
- Grayscale: The number of shades between pure black and pure white. Higher grayscale (16-bit vs. 14-bit) delivers smoother color gradients, more detail in shadows and highlights, and overall more realistic and vivid imagery.
Q4: What’s the difference between indoor and outdoor LED panels?
A: They are engineered for different environments:
| Feature | Indoor Panels | Outdoor Panels |
|---|---|---|
| Brightness | 500 – 1,500 nits | 5,000 – 10,000+ nits |
| Waterproofing | Basic (IP20-IP30) | High (IP65-IP68 – dustproof & waterproof) |
| Temperature | Standard operating range | Wider range, with heating/cooling systems |
| Viewing Angle | Very wide (＞160°) | Slightly narrower |
| Pixel Pitch | Generally finer (smaller) | Generally coarser (larger) |
⚠️ Never use indoor panels outdoors.
Q5: Can LED screens be customized into curves or irregular shapes?
A: Yes, absolutely. This is a key advantage of modular LED.
- Curved/Wave Screens: Using flexible PCB boards and specially designed cabinets, screens can be built into concave, convex, or column shapes. Common in museums, stages, and experiential retail.
- Creative Shapes: Panels can be assembled into cylinders, cubes, spheres, and custom logos. This requires careful pre-planning and structural design.
Conclusion
Choosing the right LED screen panels requires balancing technical specs, application needs, budget, and maintenance considerations. As technology advances, panels are becoming more efficient, intelligent, and versatile. Whether you need an eye-catching outdoor billboard or a sophisticated indoor video wall, understanding these key factors will help you make a sound investment that delivers outstanding performance for years to come.
Investing in the right LED screen panels isn’t just about buying hardware—it’s about building a powerful, lasting visual communication platform for your business. Consulting with experts and viewing demos before deciding will significantly reduce risk and ensure you get the best possible display performance and return on investment.
