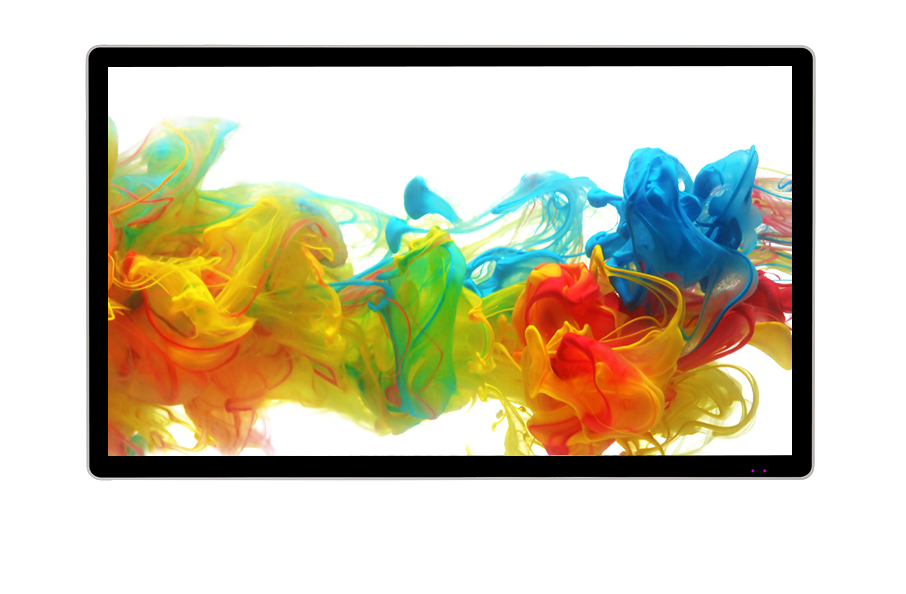

Introduction
The 65-inch Wall-Mounted Advertising Machine features a high-resolution LCD Electronic Billboard with excellent brightness and contrast, delivering clear and vibrant images. It includes an automatic image elimination function to extend screen life. With its sleek, ultra-thin design and eco-friendly technology, it performs reliably in various environments and has a lifespan of over 60,000 hours. Ideal for continuous 24/7 operation, it is a top choice for effective advertising displays.
Features
High-Definition Display
- Screen: This LCD electronic billboard offers a 65-inch screen with Full HD resolution. It includes HDMI, VGA, and optional AV inputs.
- Inputs: HDMI, VGA, AV (optional).
- Features: Timer function, large BMP icons, USB playback, hot-swappable.
- Content Management: Easy file updates, automatic log generation.
- Panel: High-quality open cell from brands like BOE, CSOT, HKC, LG.
Bright Colors
- Viewing Angle: 178 degrees with no distortion.
- Color Technology: High color saturation with dynamic color balance for brighter, clearer images.
- Inputs: HDMI, VGA, AV (optional).
- Features: Timer function, large BMP icons, USB playback, hot-swappable.
- Content Management: LCD electronic billboard with Easy file updates, automatic log generation.
Simply Design
- Protection: Tempered glass shell safeguards the LCD screen.
- Frame: High-end aluminum alloy with a cold-rolled steel back shell.
- Design: LCD electronic billboards is Ultra-thin, sleek appearance with active heat dissipation.
- Audio: Built-in magnetic high-fidelity speakers for clear sound.
Specification
| Screen Size | 65-inch |
| Resolution | 1920X1080 Full HD |
| Active Display Area | 1430*805mm |
| Backlight | D-LED |
| Viewing Angle | Viewing Angle170° (H) /170° (V) |
| Brightness | 350cd/㎡ |
| Contrast Ratio | 4000:1 |
| Response Time | 6ms |
| Reliability | 7 Ă— 24 h |
| Refresh Rate | 60 Hz |
| Operation System | Android 7.1 |
| Processor | Rockchip RK3399, 4-core, main frequency 2.0 GHz |
| Memory | 4GB |
| Built-in Storage | 32G |
| Video & Audio Input | AUDIO IN Ă— 1, HDMI Ă— 2, VGA Ă— 1 |
| Video & Audio Output | AUDIO OUT × 1, speaker (8 Ω 5 W) × 2 |
| Network Interface | LAN × 1，Wi-Fi × 1 |
| Data Transmission | USB 2.0 Ă— 2, TF Card Ă— 1, BT 4.0 Ă— 1 |
| Standby Consumption | ≤ 0.5 W |
| Input Voltage | 100 to 240 VAC, 50/60 Hz |
| Power Consumption | ＜＜220W |
| Working Temperature | 0°C to 40°C (32°F to 104°F) |
| Working Humidity | 10% to 80% RH |
| Storage Temperature | -20°C to 60°C (-4°F to 104°F) |
| Storage Humidity | 5% to 90% RH |
| Mounting Type | Wall mounting (horizontally or vertically) |
| Product Dimensions(W Ă— H Ă— D) | 1560*930*85 |
Related Products
Different sizes and configurations of Digital Signage can be tailored to specific applications, optimizing display effectiveness and enhancing customer engagement and communication.

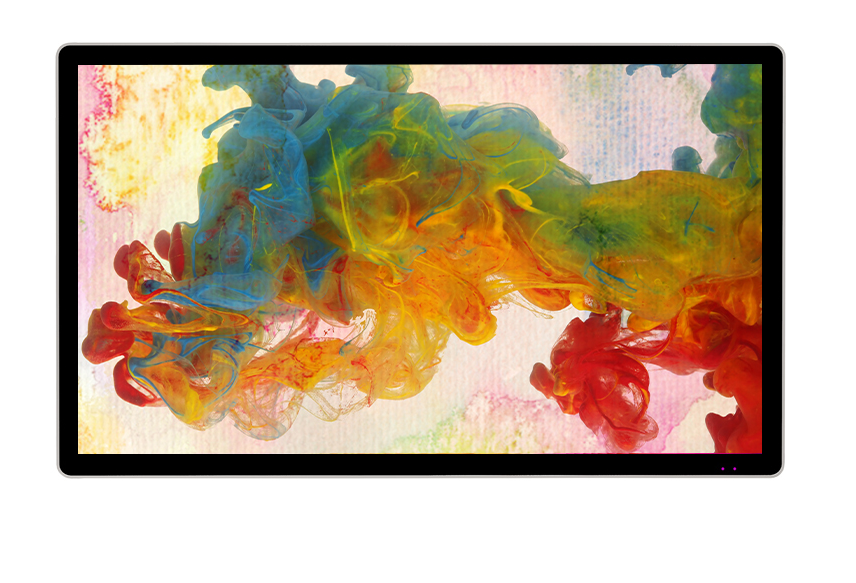

DS-185UH
18.5-inch Elevator LCD Signage
DS-215UH
21.5-inch Hallway LCD Display
DS-270UH
27-inch Restaurant LCD Digital Signage

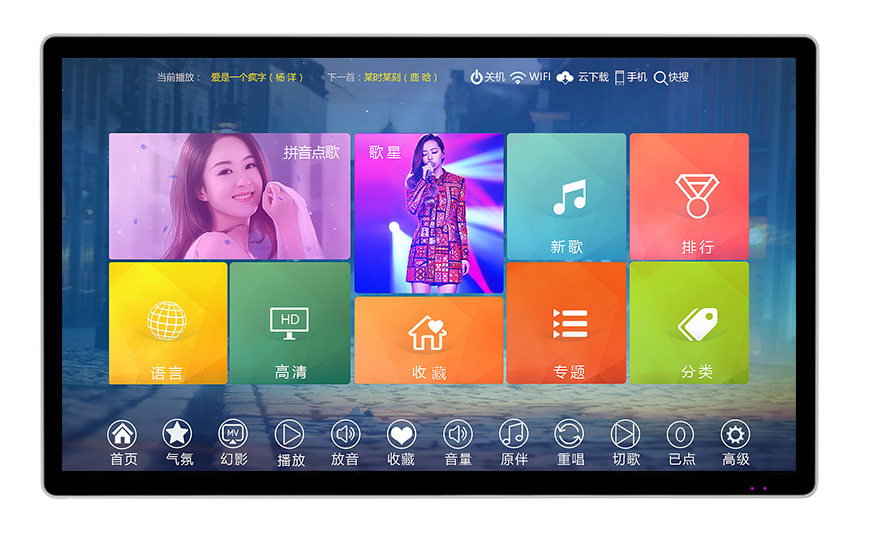

DS-320UH
32-inch GYM LCD Digital Signage
DS-500UH
50-inch Retail LCD Signage Display

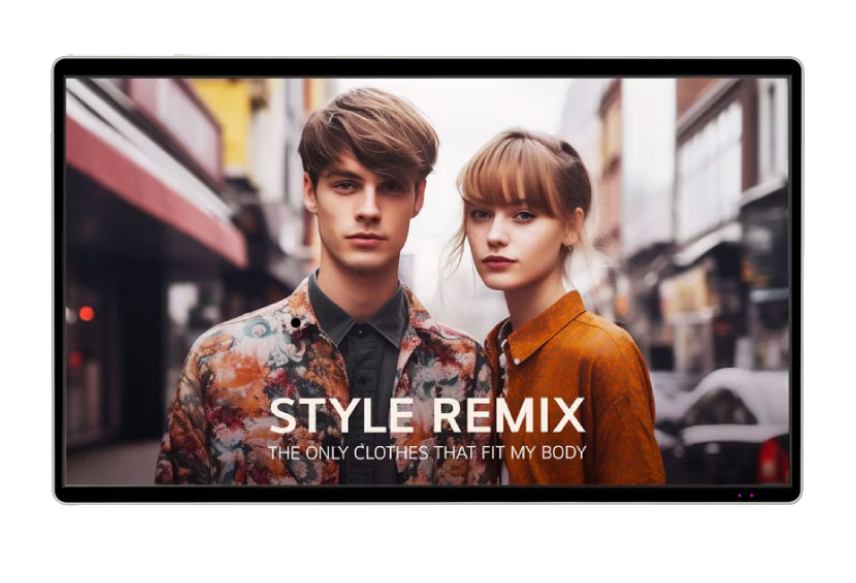

DS-750UH
